Sub-Zero BI Series Repair on the Beaches
The built-in of the teardown era — and the one that goes dark after a lightning-season outage while every light stays on.
Sub-Zero Atlantic Beach repairs the BI series built-in line — BI-36U, BI-42SD, BI-48S and their cousins — across Atlantic Beach 32233 and Neptune Beach 32266. The signature failure here is a brownout-locked control board after a power outage. Call (904) 650-0561 or schedule online; most BI repairs land between $250 and $1,100, sealed-system work $1,500 to $3,000.
For Sub-Zero repair in Atlantic Beach or Neptune Beach, call (904) 650-0561 or book online.
Updated June 13, 2026 — by the techs who actually service these built-ins.
What the BI series is, and why it is everywhere here
The Classic Built-In line ran from 2008 to 2022 and was the default flush-mount Sub-Zero® for a decade and a half. When the Atlantic Beach Country Club rebuild took off after 2014, kitchen after kitchen went in with these units — which is why Selva Marina and the surrounding streets are thick with them today.
The lineup is the alphabet soup of suffixes: BI-30U, BI-36R, BI-36U and the BI-36UFD french door, BI-42S, BI-42SD, BI-48S, BI-48SD. They share a control architecture, so they share their failures too. That is good news — we stock the common parts and know the patterns cold.
Most of these built-ins are now ten to sixteen years old. That is exactly the window where boards, ice maker valves, and gaskets start asking for attention. Catching it early is the difference between a valve swap and a full cascade of related failures.
BI symptom, first check, cost lane
These built-ins fail in a handful of repeatable ways. Read your symptom down the left and you will know roughly where the visit is headed.
| What the unit is doing | Where we look first | Cost lane |
|---|---|---|
| Panel blank after an outage, lights on | Control board, surge history | $550–$1,100 |
| EC50 on the display, running nonstop | Salt-clogged condenser, then gasket | $250–$550 |
| EC40 on the freezer side | Freezer condenser airflow and coil | $250–$550 |
| Ice maker quit, cooling fine | Water inlet valve solenoid | $250–$550 |
| Fresh-food warm, freezer cold (or reverse) | That side’s sealed system — they run separately | $1,500–$3,000 |
| Doors sweating, frost creeping back | Hardened gasket from salt and humidity | $550–$1,100 |
House rule: a sealed-system quote only comes after airflow, electrical, and pressure readings all agree. On a BI unit the two sides cool independently, so we confirm which system is actually struggling before pricing anything big.
The brownout board, explained
This is the failure that defines the BI generation on this coast, so it earns its own section.
The cabinet lighting and the control board sit on different circuits. When a thunderstorm drops power and the utility slams it back on, the restoration surge can run 50 to 100 percent over nominal voltage for a heartbeat. The board takes the hit; the lights do not. You open the door to a fully lit interior and a panel that shows nothing and cools nothing.
Sometimes a clean power-down — breaker off for a few minutes, then back on — clears a confused board. We will walk you through that on the phone before you pay anyone, and the same reset lives on our not-cooling triage page. When it does not clear, the board is damaged and gets replaced against your serial number, because Sub-Zero revised these boards through the run and the wrong revision will not run your unit.
No state takes more cloud-to-ground lightning than Florida, and the beaches run well past a hundred storm days a season. That is not weather trivia — it is why a whole-home surge device, roughly $900 to $1,200 installed, pays for itself the first storm season after a board swap.
The BI lineup at a glance
The whole Classic Built-In range ran 2008 to 2022 and shared a control architecture, but width, configuration, and door style decide which parts fit. Here is the lineup we see most between the dunes and Mayport.
| Model | Width | Configuration |
|---|---|---|
| BI-30U / BI-30UG | 30" | Over-under, single fresh-food door |
| BI-36U / BI-36UG | 36" | Over-under, single door — the Country Club default |
| BI-36UFD / BI-36UFDID | 36" | French-door fresh food over freezer drawer |
| BI-36R / BI-36F | 36" | All-refrigerator / all-freezer column pair |
| BI-42S / BI-42SD | 42" | Side-by-side, dispenser on the SD |
| BI-48S / BI-48SD | 48" | Side-by-side, the largest built-in |
Every one of these runs dual refrigeration — two sealed systems, so one side fails alone — which is why our first question on any BI call is which side is warm. The suffix matters as much as the number: a UFD seal kit and hinge are not a plain-U part.
Repair or replace a BI built-in: the beach math
Most BI units in 32233 are now ten to sixteen years old — past warranty, well short of worn out. The replace-it instinct rarely survives the arithmetic once flush-mount cabinetry and panel fitment enter the conversation. Here is how the common calls actually pencil out.
| Situation | Repair cost | Verdict |
|---|---|---|
| Brownout-locked board, refrigeration sound | $550–$1,100 | Repair — the expensive part is the cabinet, not the board |
| Ice maker valve scaled, otherwise healthy | $250–$550 | Repair, no question |
| One sealed system leaking, other side fine | $1,500–$3,000 | Usually repair vs. a $9k–$14k flush replacement |
| Both sealed systems failing on a 15-yr unit | $3,000+ | Run the numbers — replacement starts to compete |
| Cabinet liner cracked, hinges salt-seized | varies | Replace — the carcass is the problem, not parts |
A flush-mount replacement is never just the appliance. Matching the new box to existing custom panels, recutting the surround, and recalibrating hinges can add thousands before the unit even runs cold. That is why a $1,100 board on a sound BI almost always wins — and why we put the honest repair-or-replace number in writing before you decide.
BI built-ins, beach edition
Salt does to a BI condenser what it does to everything else within a few blocks of the surf: it coats the fins, throttles heat rejection, and pushes the compressor into the overrun that trips an EC50. Quarterly coil cleaning is the cheap defense, and it is the single most useful habit in our salt-air survival guide.
Educational diagnostic scenario
A BI-36UFD a block off Selva Marina Drive after a July outage: interior bright, panel black, fresh food warming. Power-down reset failed. Board read damaged on the bench-side checks, surge history obvious — no whole-home protection on the panel. New board matched to serial, surge device recommended to the owner. Unit back to 38°F within the day, with a plan to keep the next storm from repeating the bill.
One town south the picture is identical — the teardown rebuilds in Neptune Beach run the same built-ins, and we cover them the same week. Coverage notes live on the Neptune Beach page. If your unit predates this generation, the 600-series page covers the line the BI built-ins replaced.
What fails at which age on a beach BI
The Classic Built-In line ran 2008 to 2022, so most beach units are now ten to sixteen years old — and failures arrive on a rough timetable when salt and lightning are in the mix. Find your unit's age to see what tends to come due next.
| Unit age | What tends to come due | Cost lane |
|---|---|---|
| 5–8 years | First salt-fouled condenser, early gasket softening | $250–$550 |
| 8–12 years | Door gaskets aged out, ice maker valve scaling | $250–$1,100 |
| 10–16 years | Brownout-locked board, condenser fan triac | $550–$1,100 |
| 14+ years | One sealed system may leak; evaporator work | $1,500–$3,000 |
None of this is a death clock — it is a maintenance map. A BI caught at the gasket-and-valve stage rarely reaches the sealed-system row. The not-cooling triage page covers the board reset to try first, and the post-2014 Country Club units around Selva Marina are squarely in the ten-to-sixteen-year band now.
Keeping a BI off the repair calendar
Three habits prevent most of the timeline above. Each maps to a documented BI failure mode on this coast.
- Clean the condenser quarterly near the dune. Salt-felted fins are what trip an EC50 and overwork the compressor. A vacuum and soft brush behind the toe grille is most of the cure — Sub-Zero's six-to-twelve-month interval is for inland kitchens.
- Fit a whole-home surge protector before storm season. The restoration surge after a lightning-season outage — not the outage — is what brownout-locks the board. A $900-to-$1,200 device is cheap next to a board plus spoiled groceries.
- Swap water filters every six months. On 14-to-28-grain water the filter is the ice-maker valve's bodyguard; on time, the valve runs years longer before it scales shut.
The full rhythm for every appliance at the beach lives in our salt-air survival guide, and the ice-maker side is detailed on the ice maker repair page.
Quick answers
BI series questions from these streets

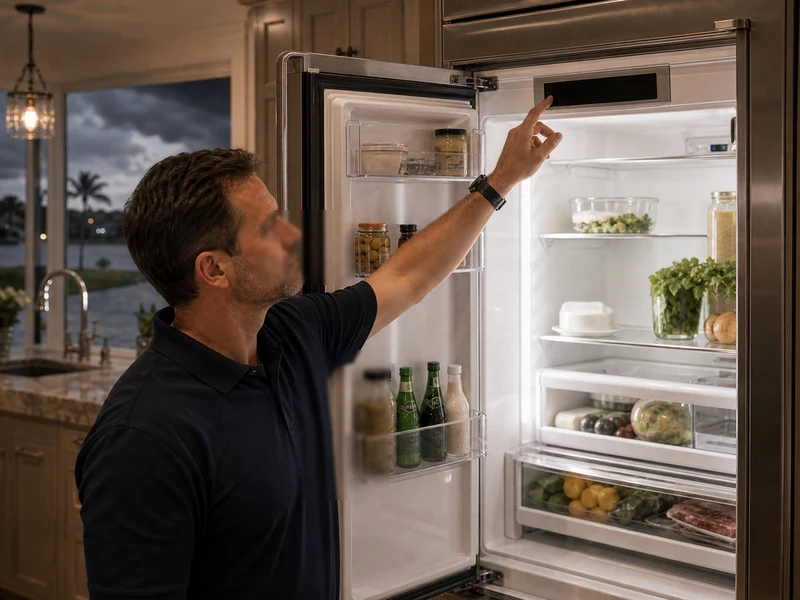

My BI-series panel went blank after a storm but the lights still work — what happened?
That is the classic brownout lock. A power blip or the restoration surge after an outage can scramble the control board while the cabinet lights, run on a separate circuit, stay on. The unit looks half-alive and cools nothing. Sometimes a proper power-down resets it; often the board is damaged and needs replacement. Either way it is the most common BI failure we see after lightning season.
Which BI models are the built-ins around the Country Club?
Mostly BI-36U and BI-36UFD french-door units, with BI-42S and BI-42SD side-by-sides and a few BI-48S kitchens in the larger rebuilds. The 2014-and-after Atlantic Beach Country Club homes were spec’d almost entirely in this generation, so Selva Marina runs heavy on 36- and 42-inch built-ins now hitting their first real repair window.
What does an EC50 code on a BI unit actually mean?
Excessive compressor run time on the refrigerator side. Nine times out of ten near the beach it starts with a salt-clogged condenser the compressor cannot reject heat through, so it runs and runs. A torn door gasket or a dirty coil triggers the same code. We clear the cause before swapping parts — sometimes the fix really is a thorough condenser cleaning.
Are BI control boards still available, or am I stuck?
Most are. The BI generation ran 2008 to 2022, so boards, water inlet valves, condenser fan triacs, and gaskets are generally still stocked or available rebuilt. We order boards against your exact serial because Sub-Zero revised them through the run and the wrong revision will not talk to your unit. Give us the model and serial off the tag inside the fresh-food door.
Is a surge protector worth it for a BI refrigerator here?
On this coast, yes. Northeast Florida logs more cloud-to-ground lightning than anywhere in the country, and the restoration spike after an outage is what kills these boards. A whole-home surge device runs roughly $900 to $1,200 installed and is cheap next to a control board plus a weekend of spoiled groceries. We will tell you honestly whether yours already has protection.
What is the difference between a BI-36U and a BI-36UFD?
Both are 36-inch over-under built-ins, but the UFD is the french-door fresh-food variant — two narrow doors up top instead of one wide one. That changes the gasket count and the hinge hardware, so a seal kit or hinge cartridge for a UFD is not the same part as a plain U. It matters when we load the van: tell us the exact suffix off the door tag and the right parts ride out the first trip.
How heavy is a BI-48 and does moving it need two techs?
A 48-inch built-in like a BI-48S runs close to 700 pounds with the doors on, and the larger PRO-adjacent kitchens push higher. Nearly every BI repair happens in place — grilles and panels off, unit untouched — so weight rarely comes up. When one genuinely has to come out of a tight Selva Marina alcove, it is a two-tech job on skates over floor protection, scheduled as one, not improvised on the day.
My BI ice maker quit but the fridge is cold — is that the board or the valve?
On a BI unit, a cold cabinet with no ice almost always points downstream of the board, at the water inlet valve. On this 14-to-28-grain JEA water the valve screen scales until it can no longer meter a fill, and the maker cycles dry. We test the solenoid electrically before swapping it, because a healthy valve with a clogged screen just needs descaling. Full ice-maker detail lives on the ice maker repair page.
What is the condenser fan triac on a BI board, and why does it fail here?
It is the solid-state switch on the control board that turns the condenser fan on and off. Heat and voltage spikes are its enemies, and the beach supplies both — a salt-fouled coil makes the compartment run hot, and lightning-season surges deliver the spikes. When the triac cooks, the fan stops, the condenser cannot reject heat, and an EC50 follows. We diagnose it at the board rather than replacing the fan motor that is often innocent.
Do BI columns like the BI-36R fail differently than the over-unders?
Somewhat. The BI-36R all-refrigerator and BI-36F all-freezer columns run a single sealed system each, so a failure takes the whole column rather than one half — unlike the dual-refrigeration over-unders and side-by-sides where one side can quit alone. Column owners often run a paired set, so we ask which cabinet is warm first. Boards, valves, and gaskets are still serial-specific across all of them, which is why we read the tag before loading parts.
